Upper Mississippi River 9-Foot Channel Navigation Project Locks and Dams, Minnesota/Wisconsin/Iowa

U.S. Army Corps of Engineers, St. Paul District
Published Feb. 27, 2015
Updated: March 30, 2022

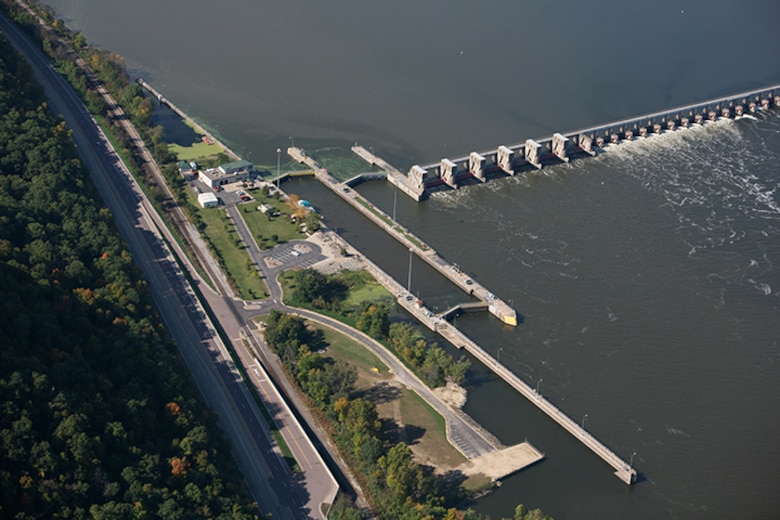

Lock and Dam 6, near Tremplealeau, Wis.

Lock and Dam 6, near Tremplealeau, Wis.

Lock and Dam 3, Welsh, Minn. Upper Mississippi River mile 796.9.

Lock and Dam 3, Welsh, Minn. Upper Mississippi River mile 796.9.

Lock and Dam 6, Trempealeau, Wis. Upper Mississippi River mile 714.1

Lock and Dam 6, Trempealeau, Wis. Upper Mississippi River mile 714.1

Lock and Dam 5, Minnesota City, Minn. Upper Mississippi River mile 738.1

Lock and Dam 5, Minnesota City, Minn. Upper Mississippi River mile 738.1

Lock and Dam 5A, between Fountain City, Wis., and Winona, Minn. Upper Mississippi River mile 728.5

Lock and Dam 5A, between Fountain City, Wis., and Winona, Minn. Upper Mississippi River mile 728.5

Lock and Dam 10, Guttenburg, Iowa. Upper Mississippi River mile 615.0

Lock and Dam 10, Guttenburg, Iowa. Upper Mississippi River mile 615.0

Lock and Dam 1, Minneapolis, Minn. Upper Mississippi River mile 847.9

Lock and Dam 1, Minneapolis, Minn. Upper Mississippi River mile 847.9

Purpose

The U.S. Army Corps of Engineers, St. Paul District is responsible for maintaining 244 miles of the Upper Mississippi River 9-foot channel navigation system.

Location

Minneapolis, Minnesota, to Guttenberg, Iowa.

Description

The Upper Mississippi River 9-Foot Channel Navigation Project is located in or contiguous to Minnesota, Wisconsin, and Iowa. The navigation project within the St. Paul District includes 13 locks and dams that are operated and maintained by the Corps. In addition to the locks and dams, the project includes channel maintenance, recreation and natural resource activities.

Approximately 18 million tons of cargo travels through the St. Paul District each year. The system’s infrastructure is comprised of 10 lock chambers 600-feet long, three lock chambers 400-feet long, 170 dam gates, eight fixed crest spillways and 16 miles of embankments acting as dams. Each lock chamber includes two sets of operable steel gates controlling entry to and exit from the lock.

Status

Operation and maintenance of the project are funded annually under the Corps’ Civil Works Operation and Maintenance appropriation. Mississippi River funding allocated to the St. Paul District in recent fiscal years has ranged from $60 million to $70 million.

Authority

The project was authorized as part of the River and Harbor Act approved July 3, 1930. The act authorized the construction, repair and preservation of public works on river and harbors and for other purposes.

Funding

FY 2021:

Miter Gate Anchorage Replacement at LD 5A, 8 & 10       $12,500,000

Dewater at LD 4                                                                          $4,000,000

Miter Gate Install at LD 2                                                          $2,000,000

L/D Pavement Repairs at LD 8 & 9                                             $300,000

Miter Gate Replacement Design at LD 6,7,9                             $300,000

FY 2022:

Miter Gate and Anchorage Replace LD 6                             $11,500,000

Auxiliary Lock Closure LD 3, 4 & 6                                         $12,300,000

End Cell LD 5                                                                               $3,500,000

Dam Gate Seals LD 10                                                                  $750,000

Dewater LD 6                                                                              $2,200,000

Miter Gate Install at LD 5A & 8                                                 $3,600,000

Infrastructure Investment Jobs Act:

Lower End Cell Plans and Specs LD 5                                         $300,000

Dam Gate / Service Bridge Painting Plans and Specs LD 5     $500,000

Dam Gate / Service Bridge Painting Plans and Specs LD 5A   $500,000

Guide wall Crib Rehab LD 7                                                       $2,200,000

Guide wall Crib Rehab LD 3                                                       $3,800,000
